Single Sided Automatic Edge Bander F370
Machine Structure:
Machine base manufactured from heavy duty fabricated steel to guarantee stability and accuracy for operating units.
Body Frame is laser cut for strength and accuracy.
Panel Feeding System:
• Main control touch screen HMI ( Human machine interface) user friendly
• The guide ways for the track pads consist of one steel bar ground and hardened and one precision machined flat bar. This maintains accuracy of panel feeding.
• Track Mechanism consists of a chain drive with sprockets at either end of the machine.
• Main track is fitted with rubber track pads.
• Top pressure consists of heavy-duty beam being raised and lowered by two steel columns. These are fitted with rubber wheels.
• Top Beam fitted with power rise and fall with digital read out
• When the top pressure is adjusted it automatically raises the trimming stations.

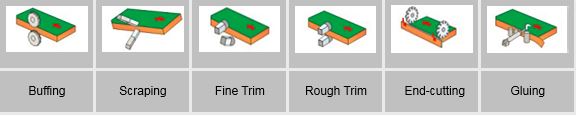

Glue Pot, Edge Feeding and Pressure Zone:
• The glue pot consists of a quick melting system and a heated application roller.
• Control via a digital thermostat.
• Edge feeding for materials 0.4 to 3mm
• Guillotine for edging up to 3mm.
• Pressure roller system consisting of 4 rollers. First roller being driven then rollers 2, 3, 4 are free running with independent pressure adjustment.
• Machine if fitted with an encoder
Snipping Unit:
• Two independent high frequency motors are fitted to trim the front and rear edges.
• Trimmers are positioned using a precision linear slide way system enabling accurate trimming of panel.
• Simple manual adjustment for accurate trimming.
• Supplied complete with saw blade.
• Motor4 power 2 x 0.37 KW
• 12000 RPM
Rough Trimming Unit:
• Two independent high frequency motors are fitted to trim top and bottom of panel.
• Independent tracing wheels for accurate machining of edging.
• Fully adjustable tracing wheels for accurate machining of edging.
• Automatic thickness adjustment via link to main beam.
• Supplied complete with straight cutters.
• Motor power 2 x 0.75KW
Fine Trimming Unit:
• Two independent high frequency motors are fitted to trim top and bottom of panel.
• Manual tilt movement between 0 and 10° for angled trimming of edging.
• Independent tracing wheels for accurate machining of edging.
• Fully adjustable tracing wheels for accurate machining of edging.
• Automatic thickness adjustment via link to main beam.
• Supplied complete with straight or radius cutters.
• Motor power 2 x 0.75KW
• RPM 18000
Edge Scraping:
• Unit complete with two cutting knives.
• Mechanical digital readouts for fine adjustment.
• Mounted on a heavy-duty framework to insure accuracy.
• Chrome plated positioning pads for accurate adjustment of cutting knives.
• Knives are 3mm radius for PVC and ABS edges.
Brushing Unit:
• Fitted with two independent motors.
• Two cloth polishing mops.
• Manual adjustment for raising and lowering the unit.
Technical Specification:
Panel Thickness: 10-50mm
Panel Width Min: 60mm
Panel Length Min: 175mm (pvc)
Edge Width: 15-65mm
Edge Thickness: 0.4 to 3mm
Feed Speed: 0 – 18 m/min
Frequency Converter: 200Hz
Installed Power: 8.75kw
Pneumatic Power: 0.6MPa
Net weight: 10000kg
Overall dimensions: 3200mm L x 760mm W x 1400mm H
Price ex-works: £12500.00 + VAT
All machines are sold subject to our standard terms and conditions which are available upon request

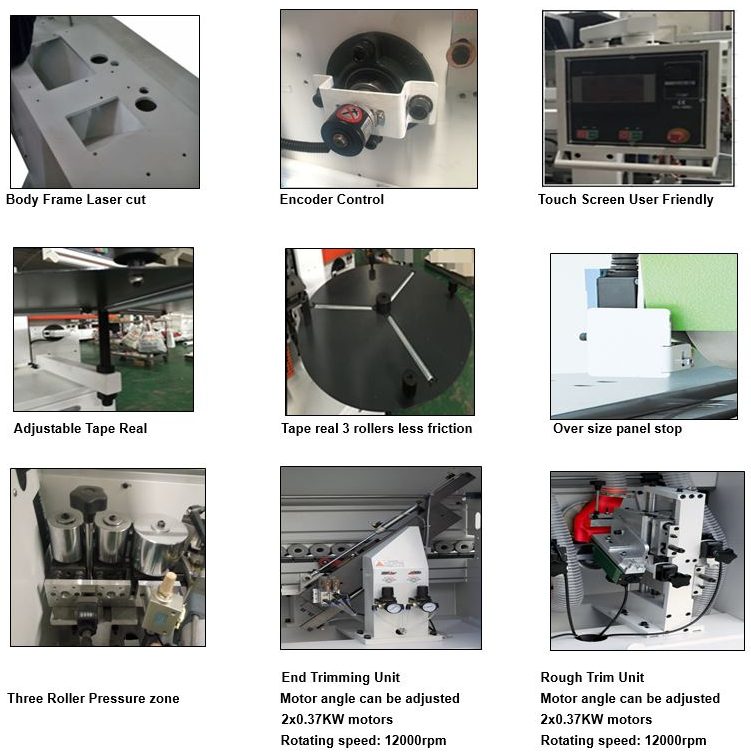

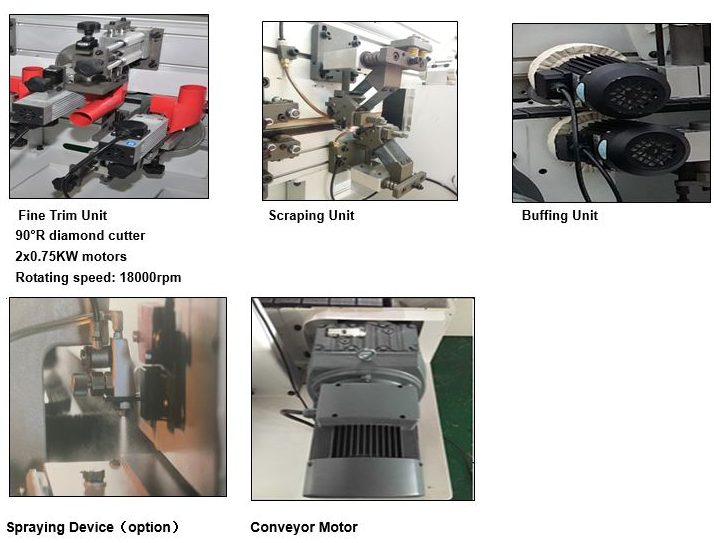

Additional Product Images:
